HumanVLA: Shared Vision–Language Representations for Humanoid Control

Overview

The study asks whether a shared visual–language representation can replace HumanVLA’s separate encoders while preserving a policy’s ability to connect task instructions, object observations, and humanoid state.

The completed report centers on HumanVLA, CLIP, HITR, and Isaac Gym. The authors contributed equally. Table I explicitly identifies the CLIP values as hypothetical estimates, so this portfolio does not present them as measured training or task-success results.

Research Question

Language-conditioned rearrangement requires a controller to relate object appearance and language to physical action. The proposed encoder change studies that interface while retaining the established teacher–student control structure.

• Can shared CLIP embeddings provide useful alignment between the image and instruction?
• How should those embeddings be adapted to the student policy’s input representation?
• What changes when the visual encoder is frozen versus trainable?
• How should task completion, placement error, and execution time be evaluated?

Study Contributions

• Co-developed the CLIP-based student representation and documented its relationship to the HumanVLA baseline.
• Specified 128-dimensional adapters for image and text embeddings.
• Combined semantic inputs with proprioception and previous actions in the student policy design.
• Compared frozen and trainable encoder configurations as a proposed ablation.
• Documented task and evaluation definitions for the HITR setting.

Technologies and Methods

• HumanVLA for the baseline humanoid control architecture.
• CLIP for shared image/text representations.

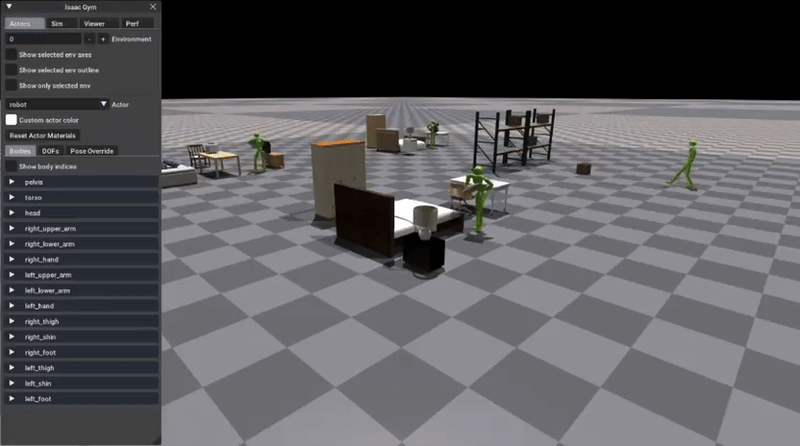

• Isaac Gym and HITR for the simulation/task setting.
• Privileged teacher, behavior cloning, DAgger, and an MLP action decoder.
• GR00T and OpenVLA appear as related work, not implemented control stacks in this study.

Technical Architecture

Student representation

• Encode visual observations and language instructions with CLIP.
• Project image/text features through 128-dimensional adapters.
• Combine adapted features with proprioception and previous actions.
• Retain the student action decoder to focus the study on the representation change.

Teacher–student learning design

• A privileged teacher supplies action supervision from simulation state.
• Behavior cloning initializes the student from teacher demonstrations.
• DAgger collects corrections on states visited by the student to address distribution shift.
• Frozen and trainable visual-encoder variants test sensitivity to representation updates.

Evaluation Scope

The report describes a 615-task HITR setting. This is the task setting, not a measured count of tasks solved by the project.

Table I reproduces paper baseline results and labels the CLIP values as hypothetical estimates. These values are not empirical results of the proposed CLIP variants.

• Evaluation dimensions: task completion, object placement error, and execution time.
• A measured comparison would require checkpoints, seeds, task splits, and evaluation logs.
• Physical-robot transfer and generalization to household scenes were not established.

Limitations & Further Work

• Measure frozen versus fine-tuned CLIP variants under a common protocol before drawing encoder-performance conclusions.
• Inspect whether the policy uses language or relies mainly on visual and proprioceptive cues.
• Test robustness to appearance changes, contact variation, and instruction ambiguity.
• SLAM-based navigation, BEHAVIOR-1K/OmniGibson scenes, waste sorting, and hardware transfer are possible extensions. They are distinct from the documented HumanVLA study.

Team

Het Patel • Vardhan Dongre • Sunny Deshpande

Equal-contribution course project. The report is retained as the primary description of the proposed architecture and its evaluation status.
